Too Many Mold Revisions
Weak early analysis leads to repeated tooling changes and delayed production.
ISO 9001 | TS 16949 | TUV Certified
Precision Injection Mold Design & Manufacturing
Your one-stop manufacturing partner in China. From 24H DFM to mass production, we deliver micron-level precision for global industries.
Core Business Matrix
Pushing the boundaries of design limits. We specialize in complex tooling solutions tailored for automotive, medical, and high-end consumer electronics.
Cycle -40%
2-Shot Mold
- Rotary Positioning: ±0.01mm
- Bonding Force: >50N
Perfect seamless integration of hard skeletons and soft touches for automotive & medical devices.
Explore 2-Shot Molds
Yield 99.2%

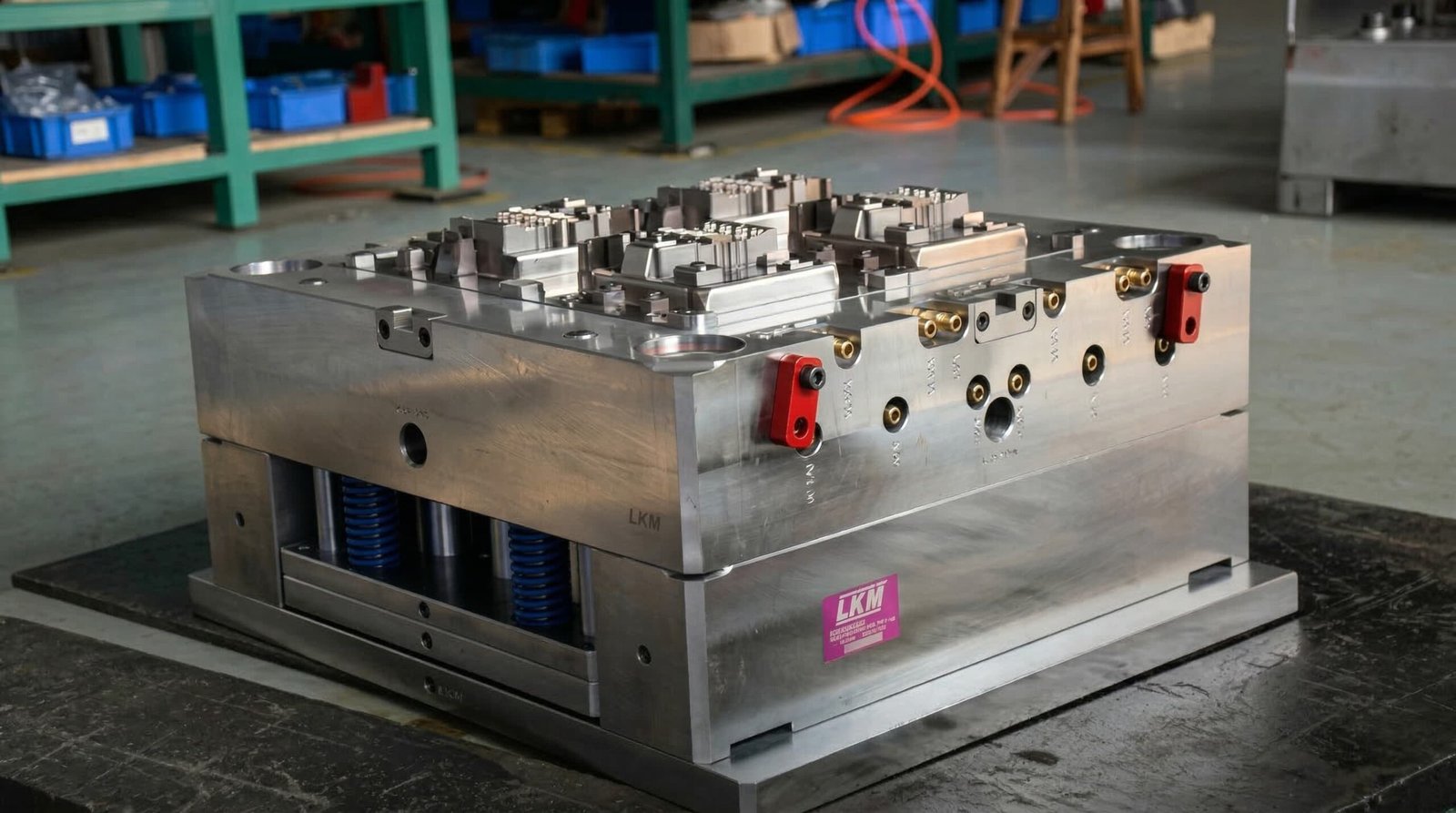

Insert Mold
- Insert Deviation: ≤±0.02mm
- Torque Strength: +20%
Empowering plastics with metallic strength. Ideal for EV high-voltage connectors & smart home plugs.
Explore Insert Molding
Micron Level

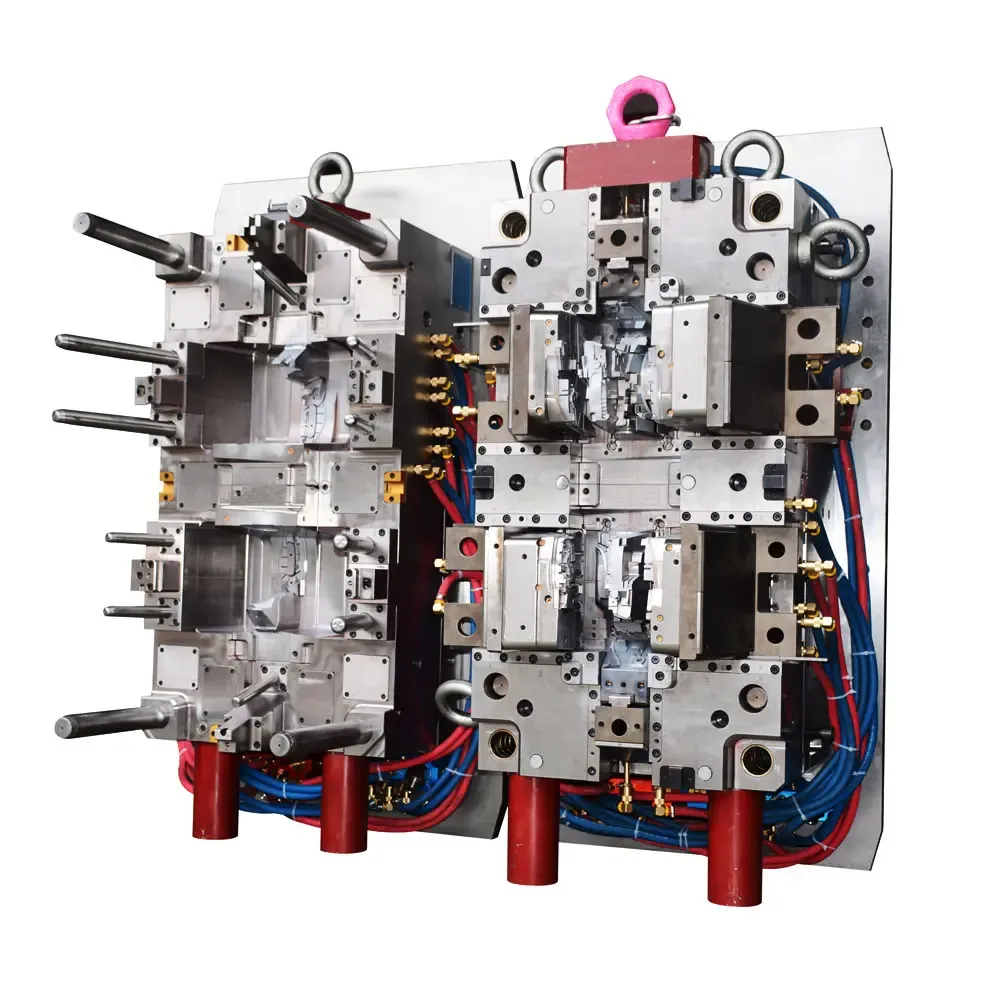

Connector Mold
- Tolerance: ±0.002mm
- Flash Control: <0.015mm
Ensuring absolute stability for 5G base station backplanes, Type-C, and FPC micro connectors.
Explore Connector Molds
Auto-Drive

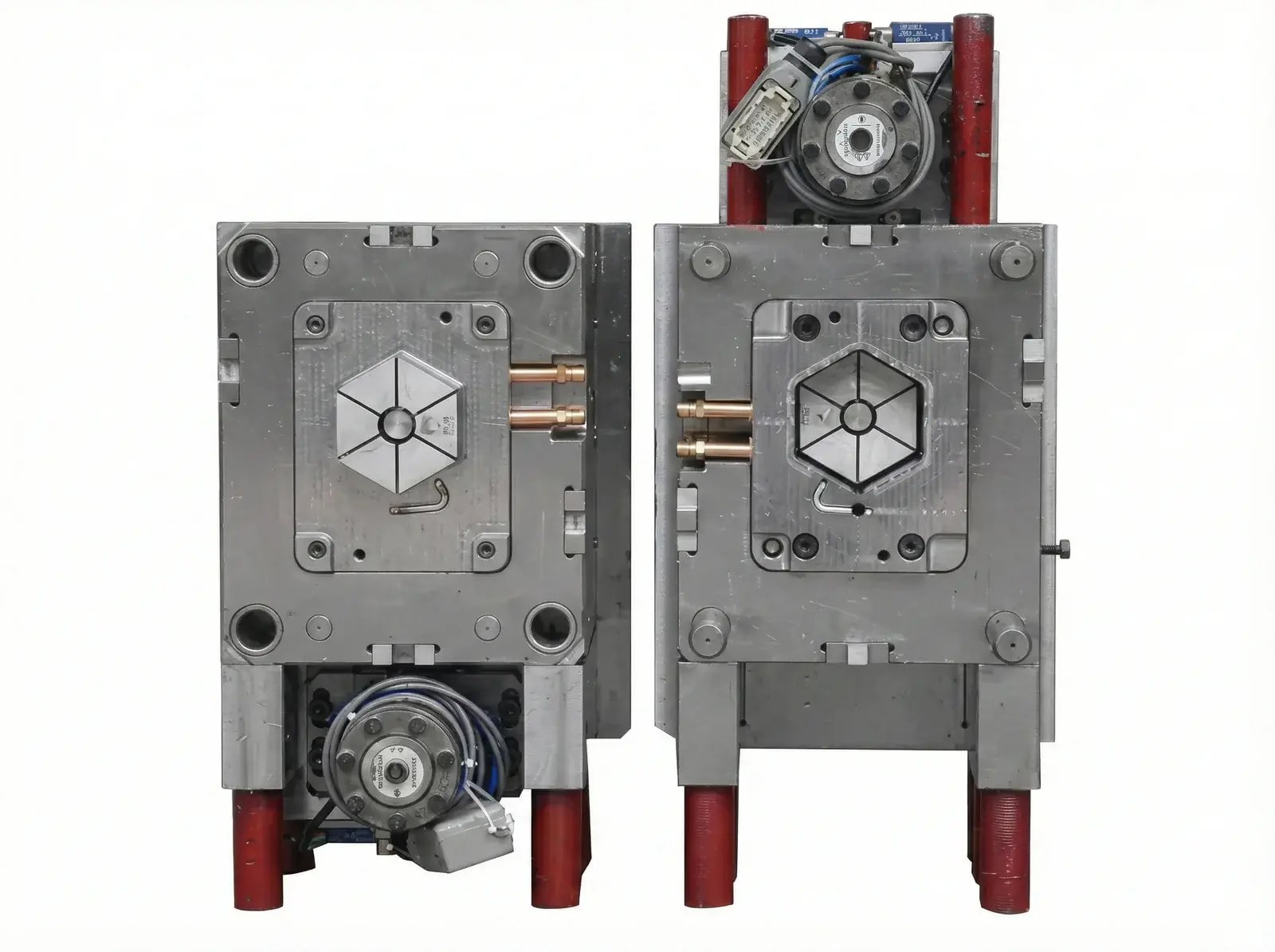

Unscrewing Mold
- Precision: ±0.5 Degree
- Cycle Time: 18-30s
Zero thread damage with servo/hydraulic precision. Perfect for medical luer locks and cosmetic packaging.
Explore Unscrewing MoldsComprehensive Tooling Solutions
Risk Mitigation
When a Mold Project Is Complex,
Small Mistakes Become Expensive
Precision tooling demands disciplined control before production issues become costly corrections.
2
Unstable Part Dimensions
Tight tolerances become difficult to maintain from trial samples to mass production.
3
Complex Ejection Failures
Slides, lifters, threads and inserts create higher risks of damage and production downtime.
4
Poor Material Bonding
Two-shot and overmolded parts may suffer from weak bonding, flash or inconsistent appearance.
5
Unclear Project Progress
Buyers cannot afford to wait weeks without knowing the real tooling status.
6
A Mold That Cannot Run Locally
Export molds must match the customer’s machine, standards, connectors and maintenance practices.
Control Point
Before T1
Early Engineering Control
GBM addresses these risks before steel cutting
—not after the mold has already become a problem.
10+
Years Experience
GBM Mold Technology Co., Ltd.
Equipped with top-tier CNC machining centers, EDM spark machines, and a cleanroom injection molding workshop, we export premium tooling and molded parts to over 15 countries globally.
Certified Quality
ISO 9001
In-House Production
50T-650T Machine Matrix
One Team from DFM to Stable Mass Production
01
RFQ and Drawing Review
Review customer drawings, material, annual volume, mold standards and production requirements.
02
DFM and Feasibility Analysis
Identify draft, wall thickness, undercut, gate, ejection, sealing and dimensional risks before tooling begins.
03
Mold Design and Moldflow
Develop the mold structure, runner, cooling and ejection solution based on the product and production target.
04
Precision Mold Manufacturing
CNC, EDM, component inspection, mold fitting and assembly are managed through an in-house tooling process.
05
Mold Trial and Validation
Provide trial samples, molding parameters, inspection reports, trial pictures and video updates.
06
Injection Molding and Assembly
Support low-volume production, mass production, secondary operations, assembly and export delivery.
The same project team follows the mold from the first drawing review through final production approval.
Discuss Your Project Requirements
Hardware Strength
World-Class Manufacturing Equipment
To guarantee our industry-leading ±0.01mm precision and rapid 15-day T1 turnaround, our in-house facility is fully equipped with top-tier machinery from globally recognized brands.
EDM Center
Makino
Makino High-Speed EDM Machining Centers ensuring tight tolerances up to ±0.005mm for complex mold cores.
Benefit:
Delivers superior surface finishes, significantly reducing your post-polishing costs.
Injection Molding

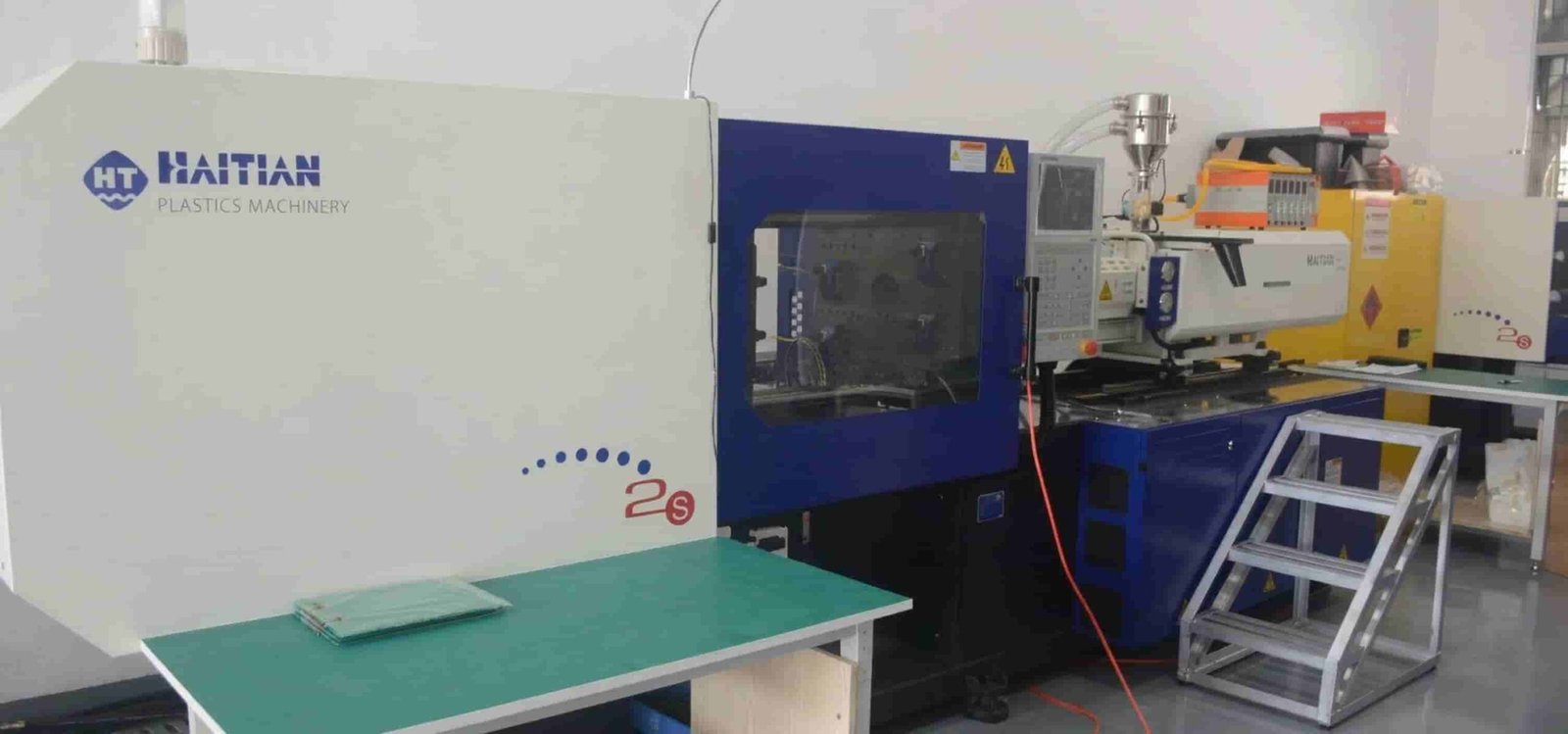

Haitian
Industry-leading Haitian servo-driven injection molding machines ensuring high-efficiency, stable mass production with exceptional consistency.
Benefit:
Drastically lowers per-part costs and accelerates your product's time-to-market.

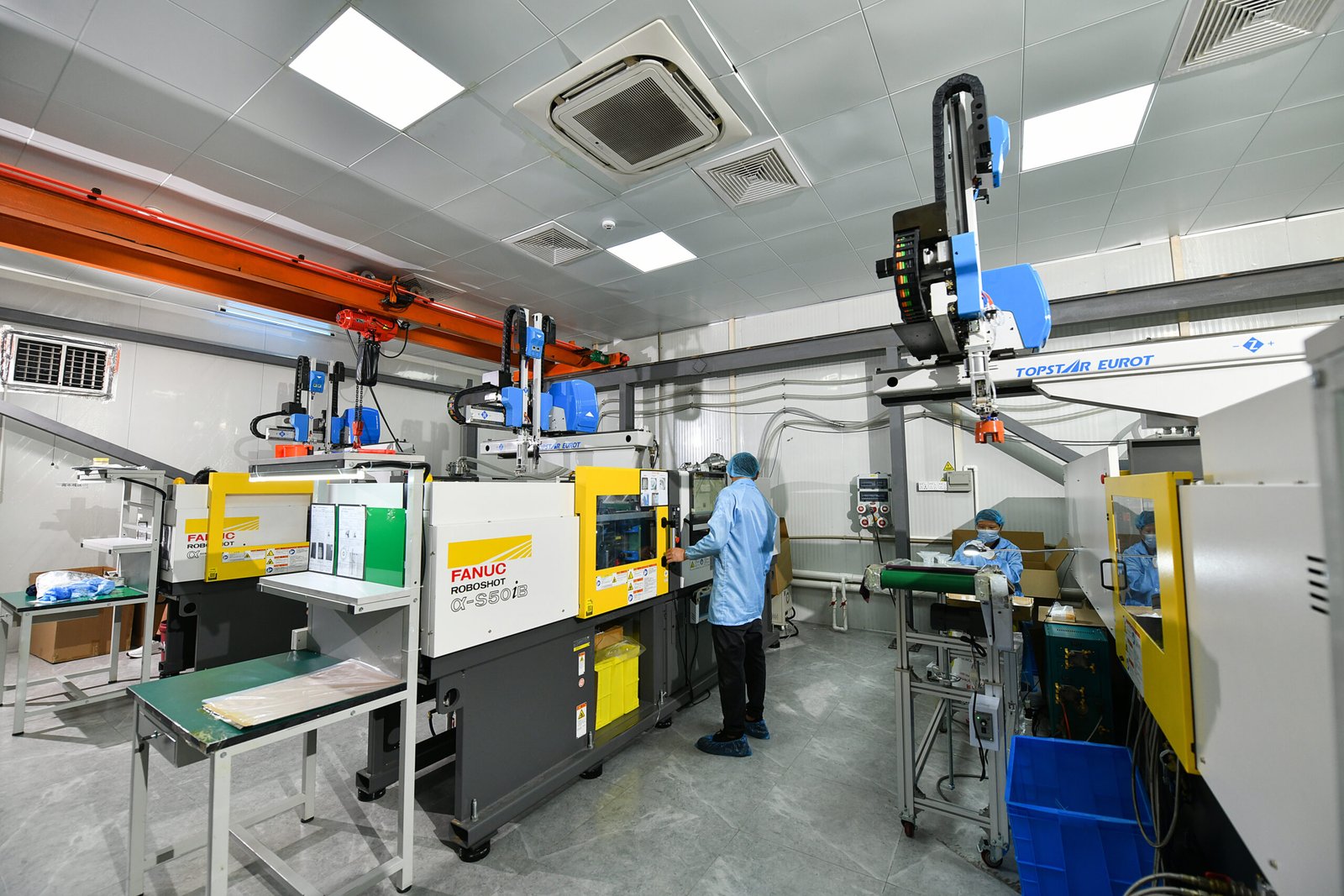

Injection Molding
FANUC
All-electric injection molding machines (50T to 150T) providing highly stable, energy-efficient mass production with zero-defect consistency.
Benefit:
Ensures 100% yield rates, eliminating costly secondary sorting and quality risks.

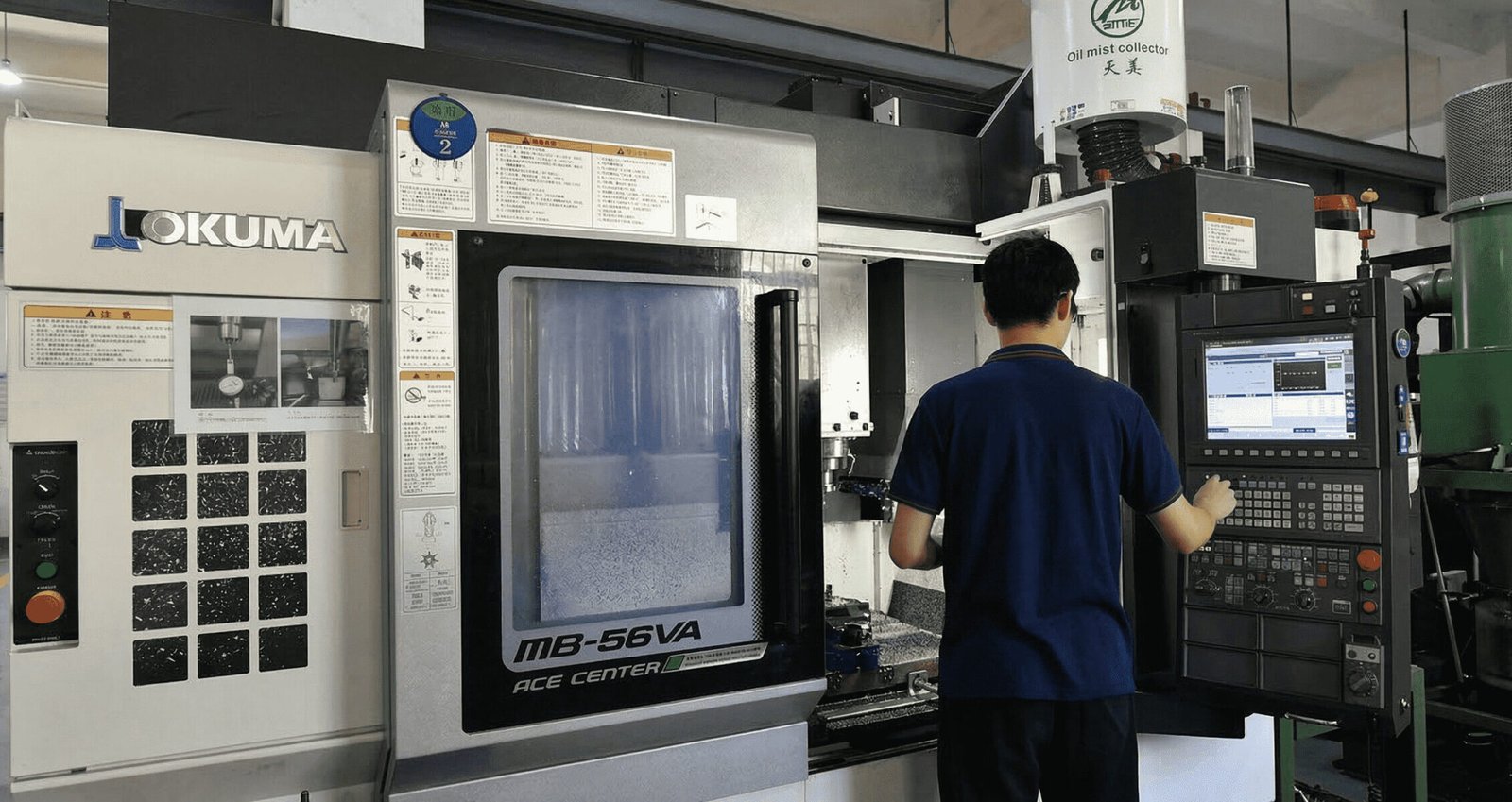

CNC Machining
Okuma
Advanced Okuma CNC machining centers delivering unparalleled rigidity and thermal stability for ±0.008mm precision on mold bases.
Benefit:
Guarantees seamless final assembly and significantly extends mold operational lifespan.
ISO9001 Certified
100% In-House Manufacturing
24/7 Automated Production
Complex Projects We Are Built to Handle

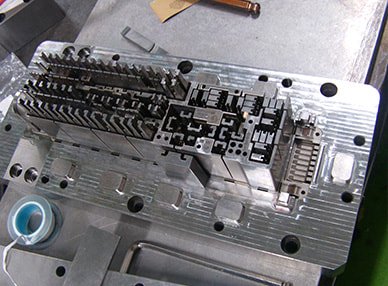

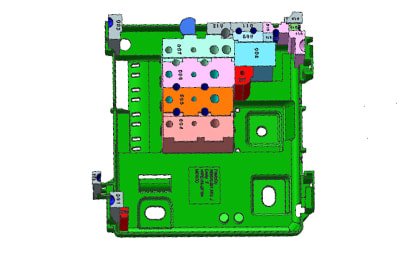

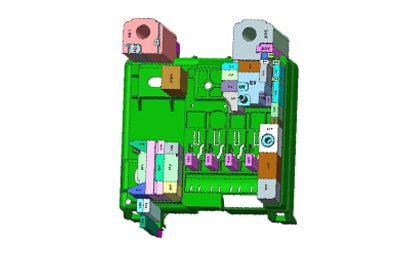

View More Mold ProjectsHigh-Insert-Count Fuse Block Mold
Challenge
More than 1,400 precision inserts and fragile profiles created a high risk of component damage and maintenance downtime.
Solution
GBM redesigned the insert and mold structure to improve component strength, maintainability and molding stability.
Result
The new mold received approval after the first trial and resolved the previous maintenance problem.

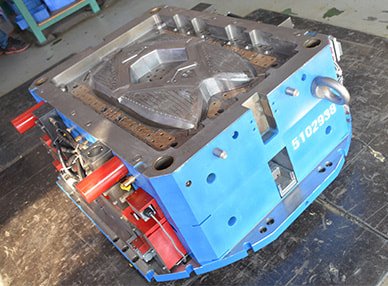

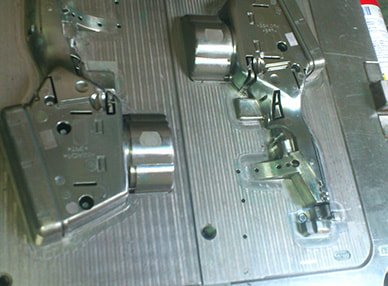

Large Two-Shot Mold
Challenge
A large multi-material automotive component required controlled material transfer, complex lifters and a stable hot runner system.
Solution
A 5.5-ton two-shot mold was developed with hydraulic lifters and a production-focused mold structure.
Result
The mold supported stable two-material molding and the customer’s production requirements.
High-Temperature Threaded PEEK Part
Challenge
The component included internal and external threads and required molding at high mold temperature.
Solution
GBM developed an automated unscrewing structure with dedicated heating and temperature-control considerations.
Result
The mold achieved reliable thread release and stable production.
Fast-Delivery Stack Mold
Challenge
The customer needed higher output without significantly increasing production floor space or machine capacity.
Solution
GBM developed and completed the stack mold project from design to shipment in approximately nine weeks.
Result
The stack mold increased production efficiency and reduced unit manufacturing cost.
Certified Quality & Global Trust
GBM Mold Technology Co., Ltd. is committed to the highest manufacturing standards, delivering precision injection molding solutions to industry leaders worldwide.
ISO 9001:2015
Quality Management System
IATF 16949
Automotive Quality Standard
TUV Rheinland
Certified Manufacturer
Trusted by Top-Tier B2B Enterprises & Brands
Fast & Reliable
Concept to Mass Production
Agile One-Stop Services
Beyond top-tier mold manufacturing, GBM acts as your "Chinese Manufacturing Partner", providing a closed-loop service from concept to mass production.
Extreme Response Speed
Professional DFM report output within 24 hours of receiving 3D files. First trial (T1) completed in as fast as 15 days.
100% In-House Smart Manufacturing
Covering mold making, injection molding, surface treatment (painting/silk screen/texturing), and assembly, eliminating cross-factory quality risks.
Rigorous Quality Control

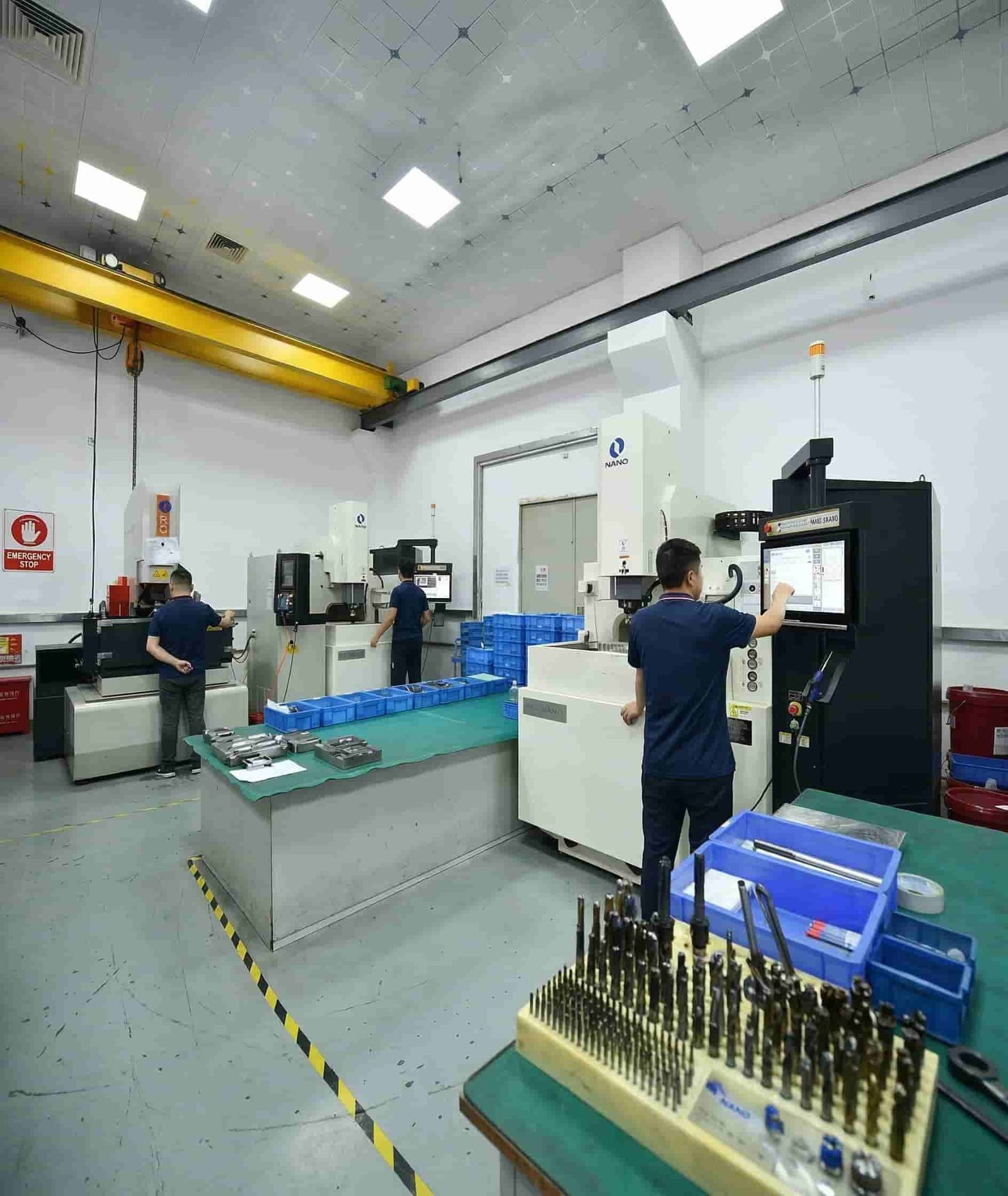

Batches include CPK reports & COA. Executing AQL 0.65/1.0 international standards, backed by CMM and CCD visual full inspection.
Industry Experience Across Complex Plastic Components

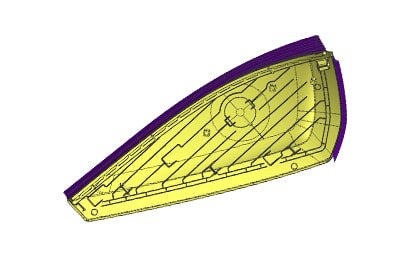

Automotive
Two-shot components, connector housings, fuse blocks and complex functional plastic parts.

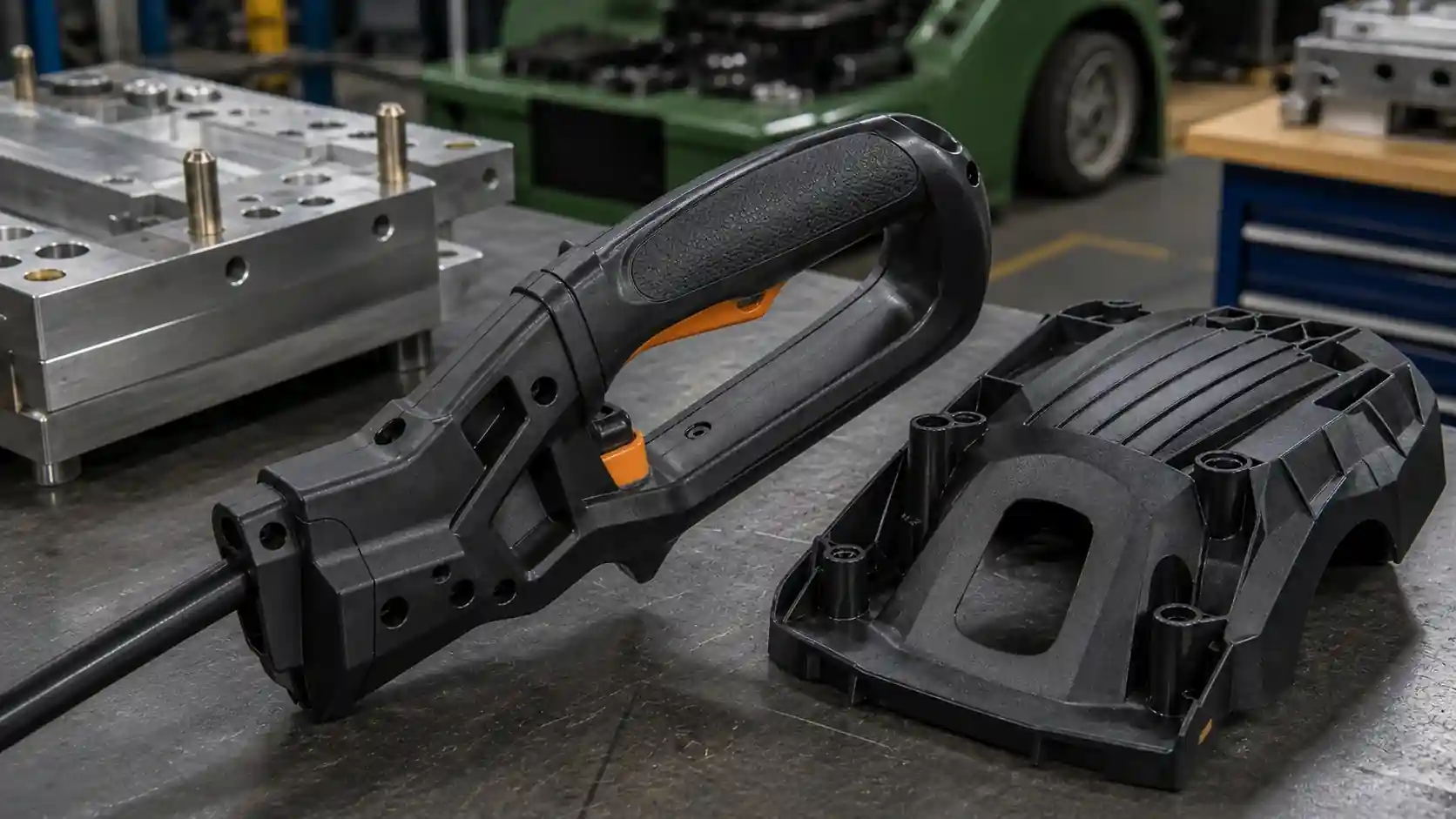

Outdoor Power Equipment
Durable housings, handles, functional parts and overmolded components for lawn and garden equipment.
Medical Devices
Precision housings, threaded components, connectors and high-performance polymer parts.

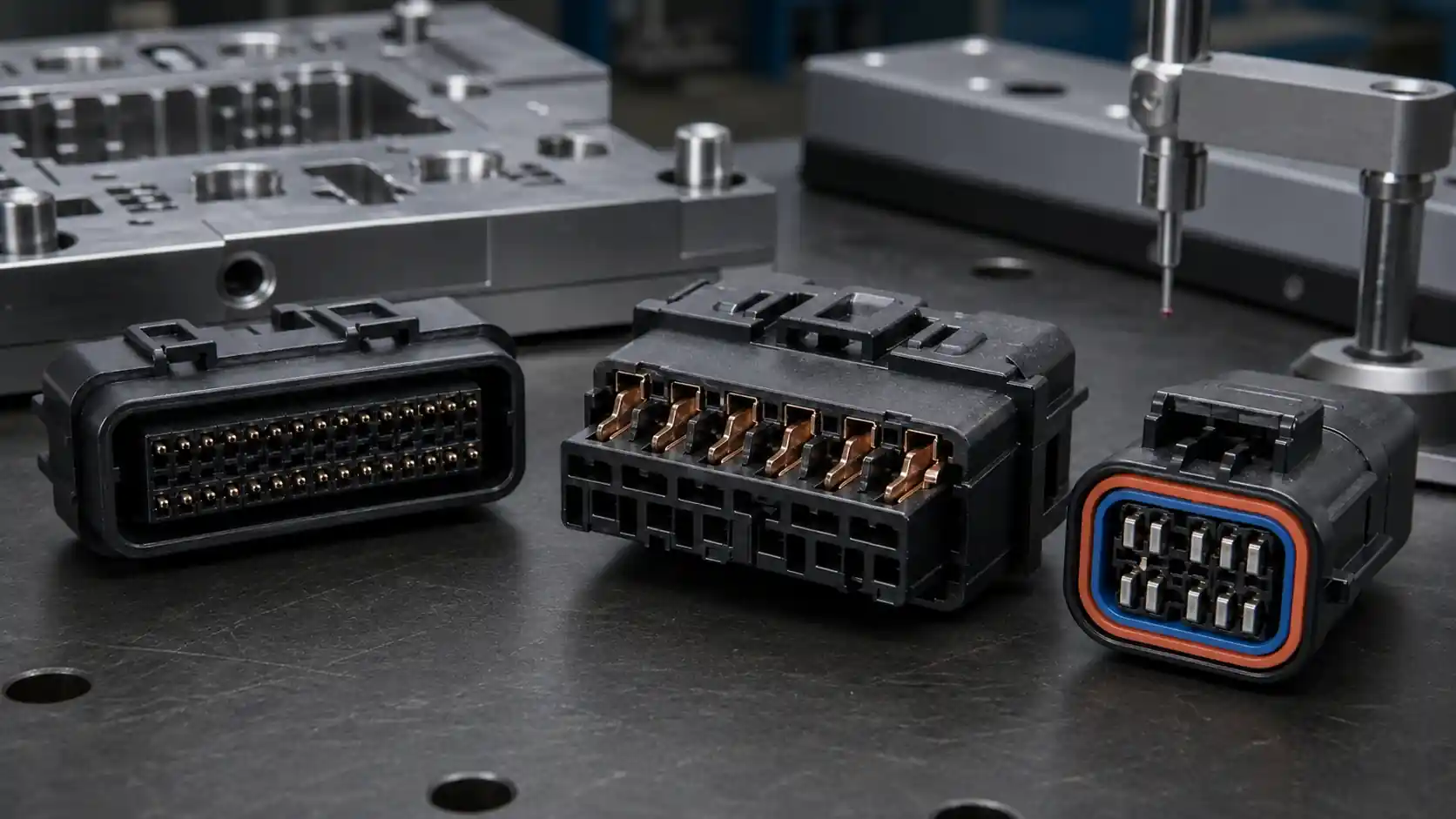

Electrical Connectors
Fine-pitch, high-insert-count and tightly controlled insert-molded components.

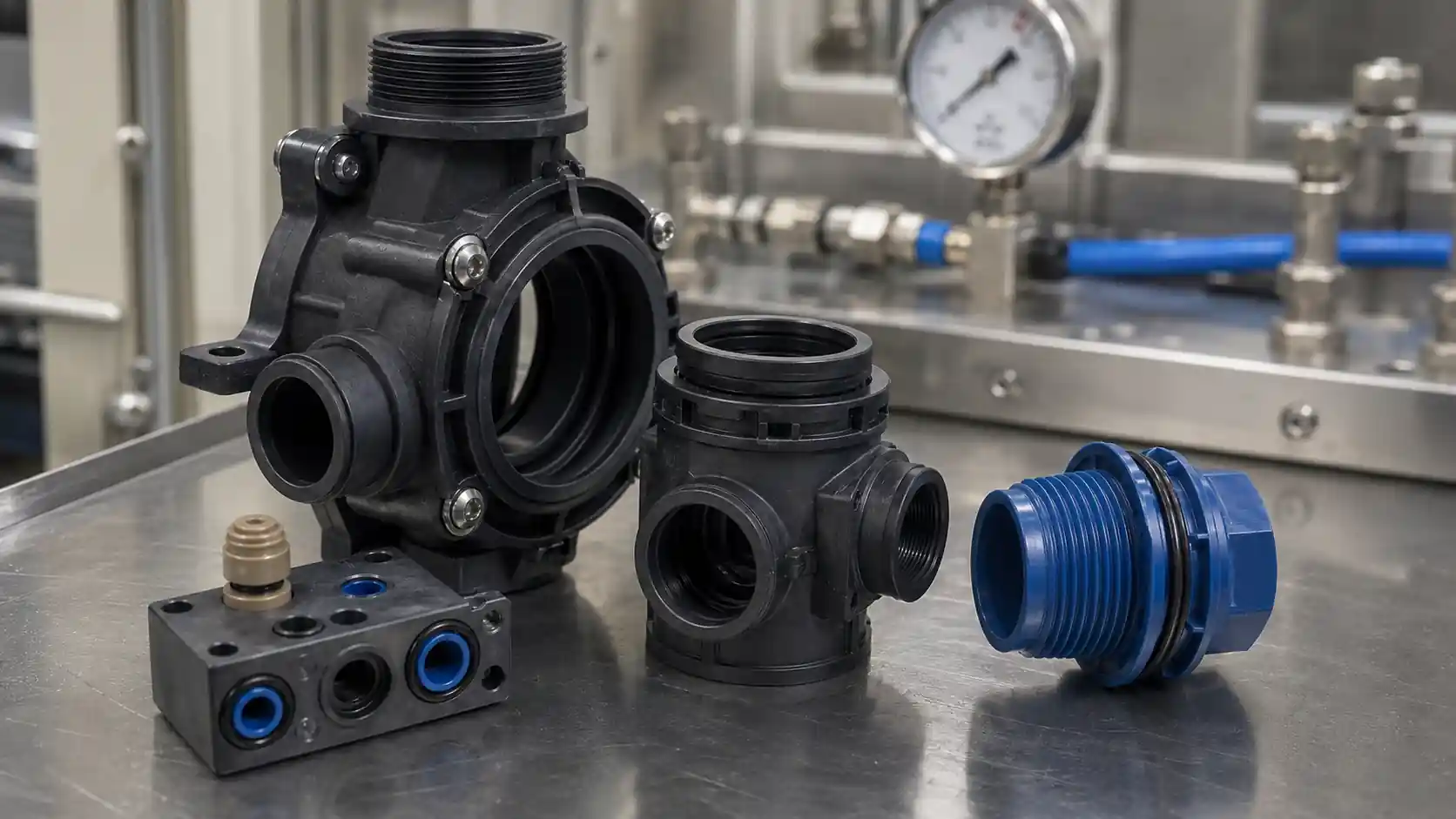

Fluid Control
Valves, pump housings, and threaded fittings requiring precise sealing and pressure resistance.

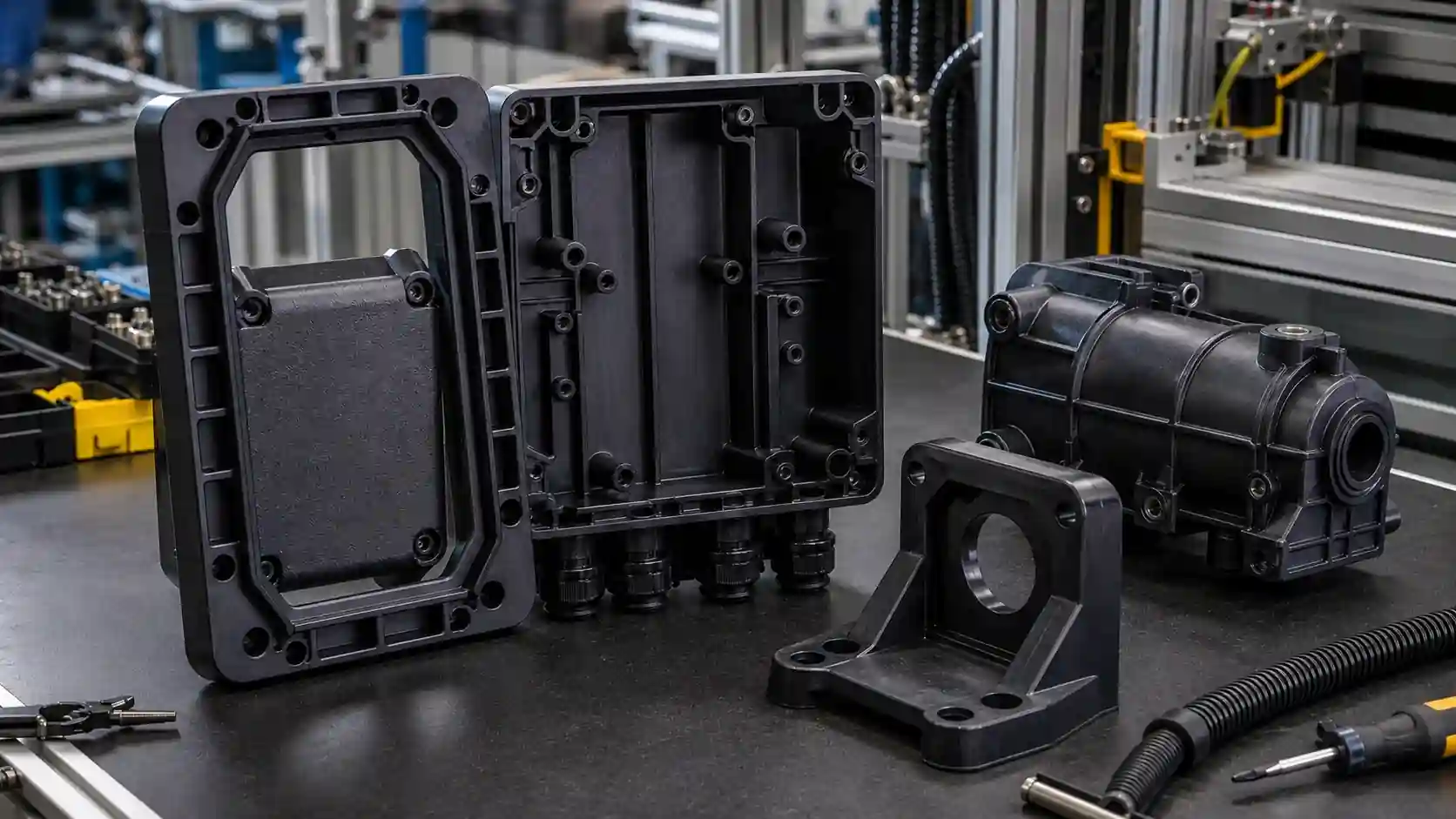

Industrial Equipment
Rugged enclosures, structural components and high-strength engineering plastic parts.

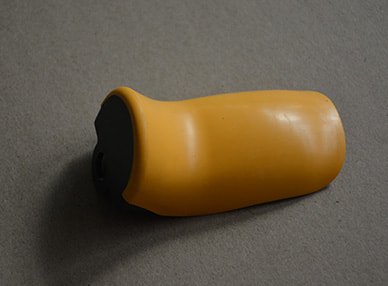

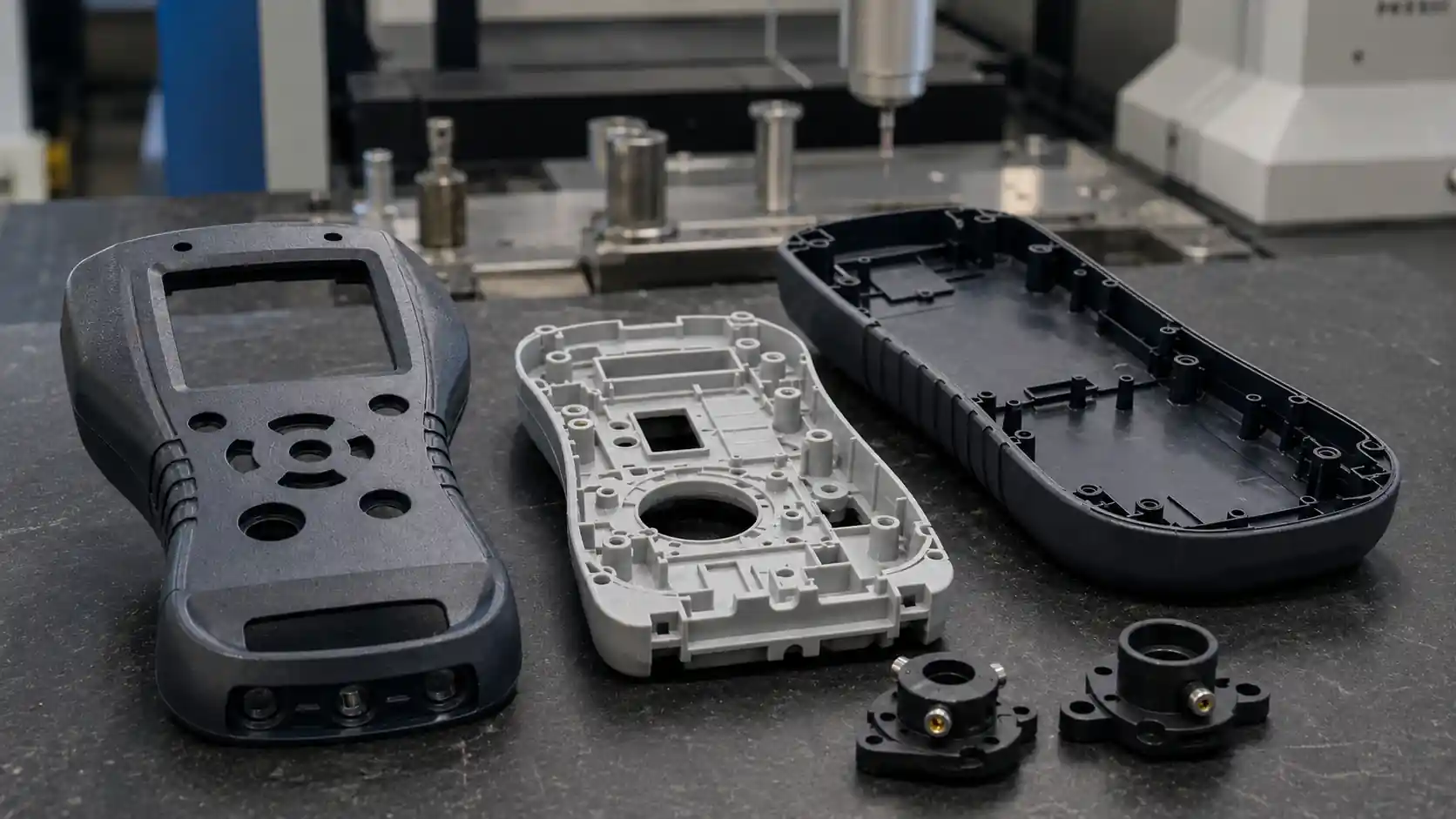

Precision Instruments
High-tolerance housings, optical mounts and intricate internal structural components.

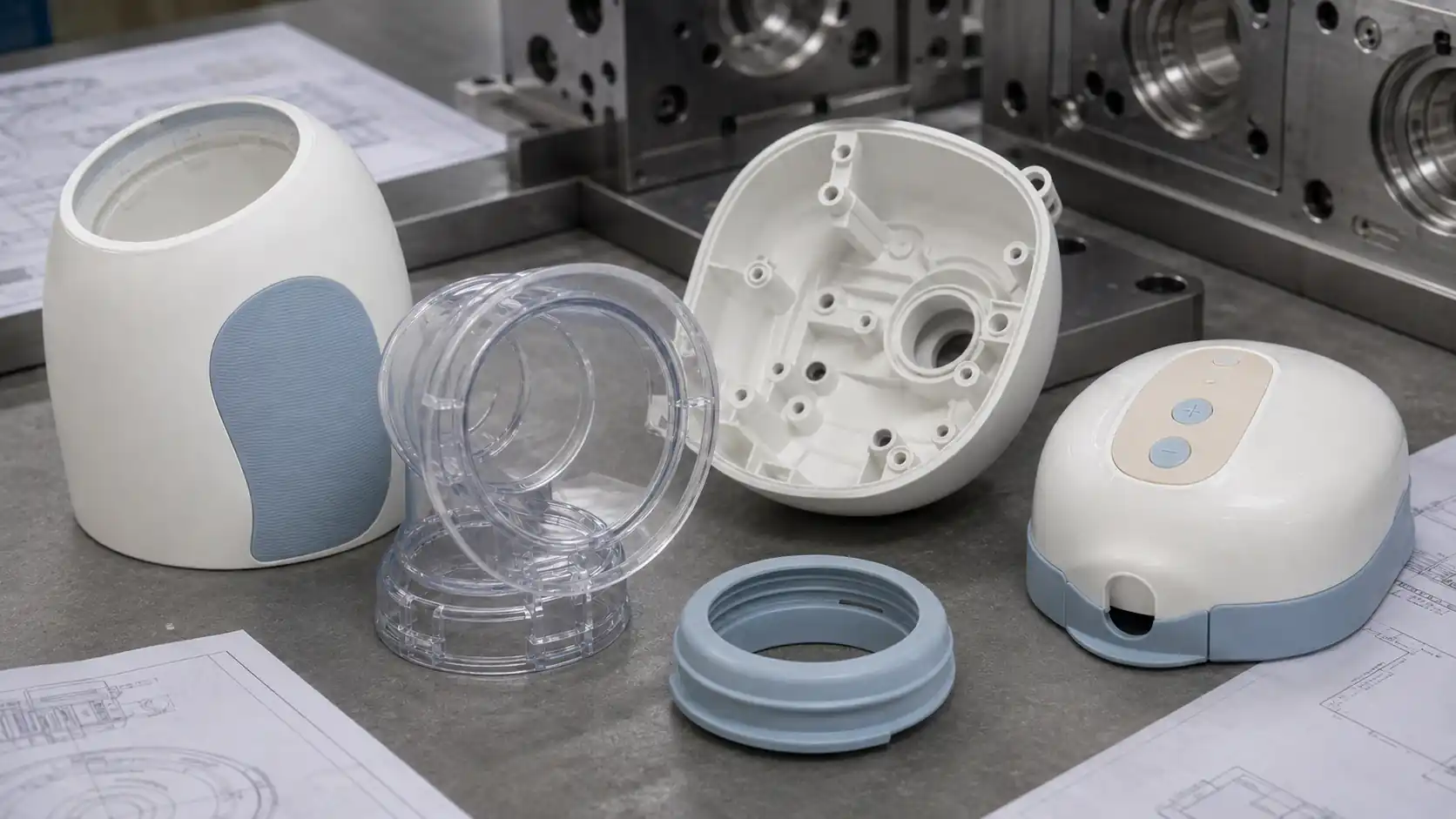

Baby Care Products
Safe, smooth, overmolded and multi-material components with strict aesthetic requirements.
Proven Expertise
Real Challenges. Precision Solutions.
We don't just manufacture molds; we engineer solutions. Explore how our in-house DFM analysis and advanced manufacturing capabilities have optimized production for complex global projects.
Automotive
High-Precision Connector Mold
The Challenge:
- Automotive component exposed to extreme high temperatures
- Strict ±0.002mm tolerance requirements
- High scrap rates with previous supplier
GBM Solution:
- Applied special heat-resistant mold steel
- Unique conformal cooling channel design
- Executed 24H DFM analysis
The Result:
- • Extended mold lifespan by 30%
- • Reduced cycle time by 22%
- • Achieved zero defect rate in T1 trial
Medical
2-Shot Syringe Component
The Challenge:
- Poor chemical adhesion between PC & TPE
- Strict ISO medical biocompatibility standards
GBM Solution:
- Advanced 2-Shot rotary mold design
- Precise, independent temperature control zones
The Result:
- • Achieved perfect structural bonding
- • Eliminated secondary assembly needs
- • Saved 30% in overall unit costs
Electronics

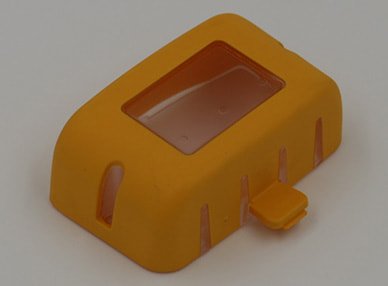

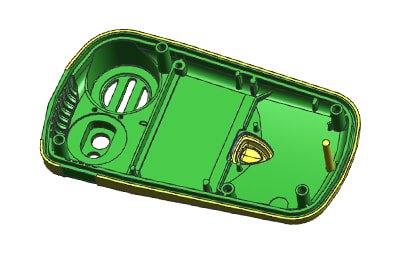

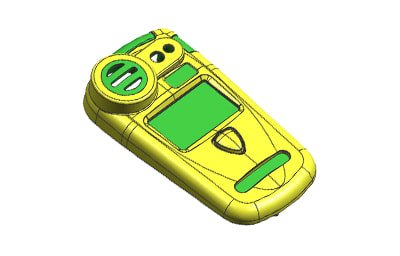

Overmolded Smart Housing
The Challenge:
- Delicate metal insert deformation
- Flash during high-pressure injection molding
GBM Solution:
- Redesigned gate locations
- Balanced flow via altered runner system
- Applied specialized in-mold stress relief
The Result:
- • Guaranteed 100% insert stability without flash
- • Improved overall structural integrity
- • Passed drop tests on the first try
Have a challenging part design? Our engineering team is ready to review your CAD files.
Start Your Project Today
Send us your 3D drawings or project details. Our engineering team will provide a comprehensive DFM report within 24 hours.
